Tools and Equipment
The following has been taken from:
ORD 7 SNL G-758
Department of the Army Supply Manual
GROUP G
ORGANIZATIONAL MAINTENANCE ALLOWANCES
FOR
TRUCK, AMBULANCE:
FRONT LINE, 1/4 TON, 4X4
M170
TRUCK, UTILITY:
1/4 TON, 4X4, M38A1
TRUCK, UTILITY
1/4 TON, 4X4, M38A1C
APRIL 1956
SECTION I - TOOLS AND EQUIPMENT
- BAG, tool, empty, 20 1/4 x 18 1/4 in to top of flap, open.
- BRACKET, drum, inflammable liquid (gasoline) S, welded, comp w/strap
(M38A1m M38A1C).
- HANDLE, jack, collapsible type, 36 1/4 in lg.
- JACK, automobile, screw type, 1 1/2 ton cap, 7 1/4 in contracted ht,
16 in extended ht.
- PLIERS, comb, slip jt, w/cutter, 8 in lg.
- SCREWDRIVER, comm, hv-duty, integral hdl, 6 in blade, 3/8 in tip, 11
1/4 in lg.
- WRENCH, OPEN END ADJUSTABLE: 15/16 in jaw opng, 8 in lg.
- WRENCH, plug, stght bar, sq, 1/2 in plug, 2 1/2 in in lg.
- WRENCH, wheel stud nut, sgle-hd, offset socket, hex, 3/4 in opng, 9
1/4 in lg.
SECTION I - EQUIPMENT ISSUED BY OTHER TECHNICAL SERVICES
- 1 ea. AXE: chopping, single bit, handled, 4lb
- 1 ea. CAN, gasoline, military, 5 gal cap
- 1 ea. SHOVEL: hand, general purpose, round pt, open back, rolled
shoulder, tubular shank, size No. 2, D handle
 |

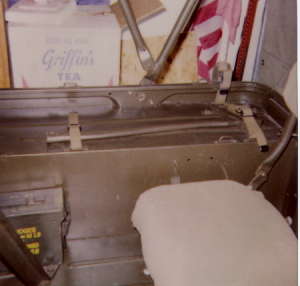

Axe location over passenger
wheel well. |
|
|
|
