Radio Configurations and Mounts
The following has been taken from:
ORD 3 SNL G-1
Department of the Army Supply Manual
MAJOR ITEMS AND MAJOR
COMBINATIONS
OF
GROUP G
APRIL 1954
| Ord Stock # |
Description |
Unit of Issue |
Reference Symbols |
Figure
No. |
| G2758-8358320 |
TRUCK, UTILITY, 1/4 ton, 4x4,
M38A1 w/e or |
ea |
G-758 NX |
226 |
| G2758-8358320 |
TRUCK, UTILITY 1/4 ton, 4x4,
w/winch, w/e |
ea |
G-758 NX |
226 |
| A055-7069767 |
Radio sets and combinations |
|
|
SigC |
|
a. (SCR-499 or SCR-510 or SCR-610 or SCR-619 or SCR-694C
or AN/GRC-9 or SCR-506 or SCR-508, or SCR-528 or SCR-522 or SCR-608A or
SCR-608B or SCR-628 or AN/GRC-3,-4,-5,-6,-7, or -8 or AN/VRQ-1,-2, or-3,
or AN/VRC-8,-9,-10) |
|
or |
|
b. (AN/GRC-9 or SCR-694C) and (SCR-619 or SCR-610) |
|
or |
|
c. (AN/GRC-3,-4,-5,-6,-7, or-8, or AN/VRQ-1,-2, or-3) and
(AN/GRC-9) |
|
Allowances, vehicular (See ORD 7 SNL G-758) |
To assist in reducing download time, Thumbnail pictures are below - simply
click on the picture to see an enlarged version. To return to this page,
use your Browsers BACK button.
 |

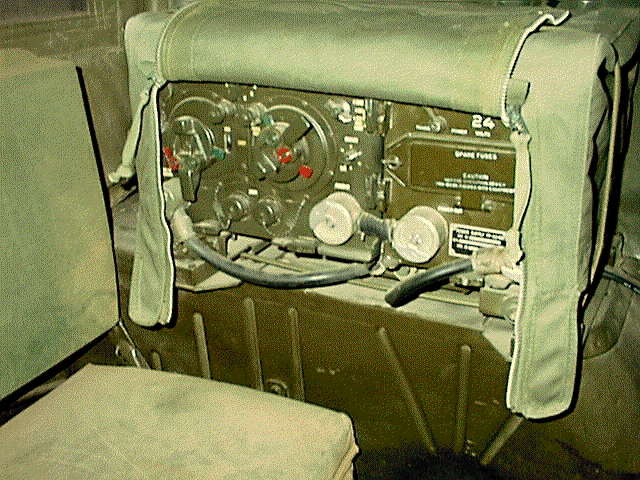

Model RT/GRC-68 with cover |
 |

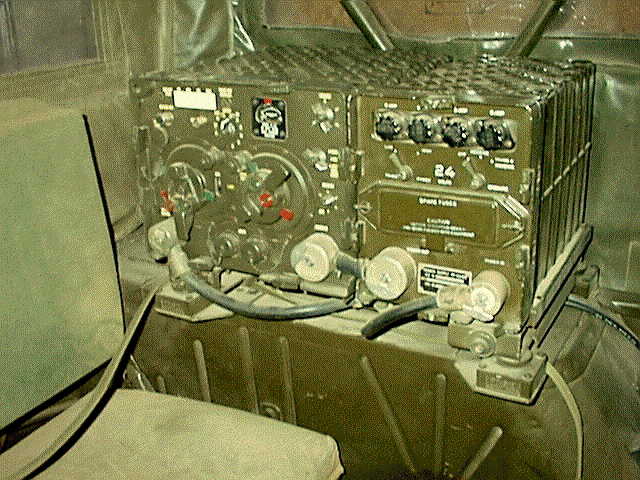

Model RT/GRC-68 without cover |
 |

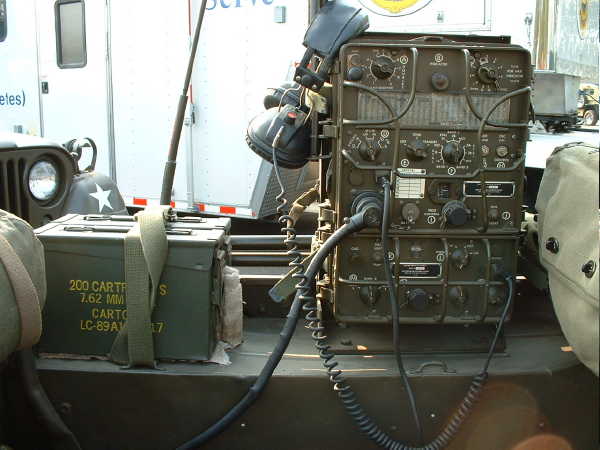

Model AN/GRC-9 HF transceiver
in an
M38A1. The whole set with power supply, antennas, accessories
is the VRC-34. The AN/GRC-9 is nearly identical to the WW2
BC-1306. All accessories were interchangeable. The
"Angry Nine" was a Korean War ear piece of equipment that
was copied by various European manufacturers and used by NATO
countries into the 1970's. (Submitted by Don Carlton) |
 |

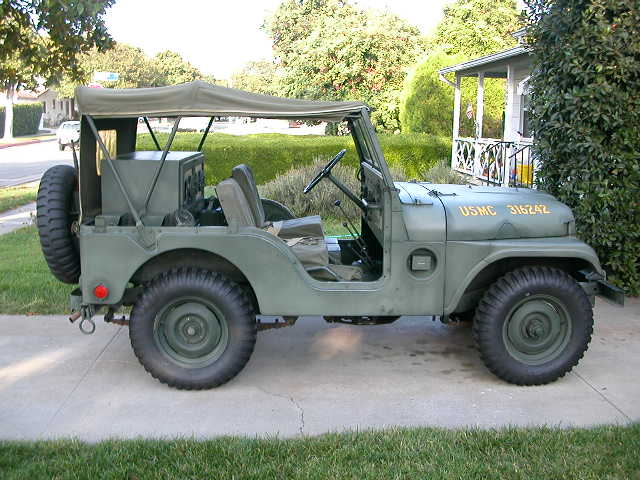

1964 USMC M38A1 including
an original radio setup consisting of a CY-731 cabinet used by the
USMC in MB's, M38's and M38A1's. |
 |

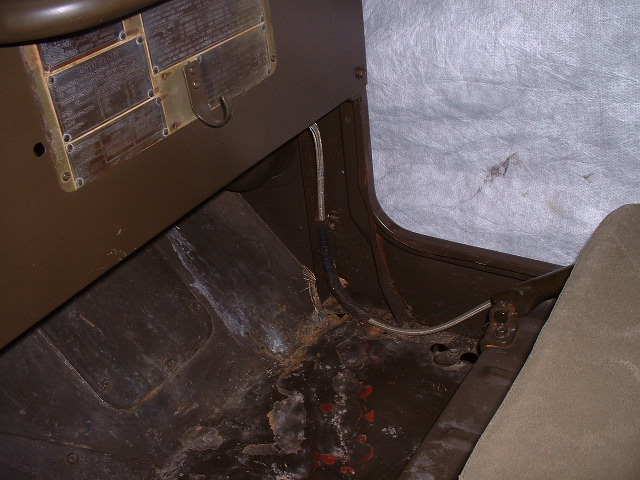

Radio accessory wire
harness |
 |

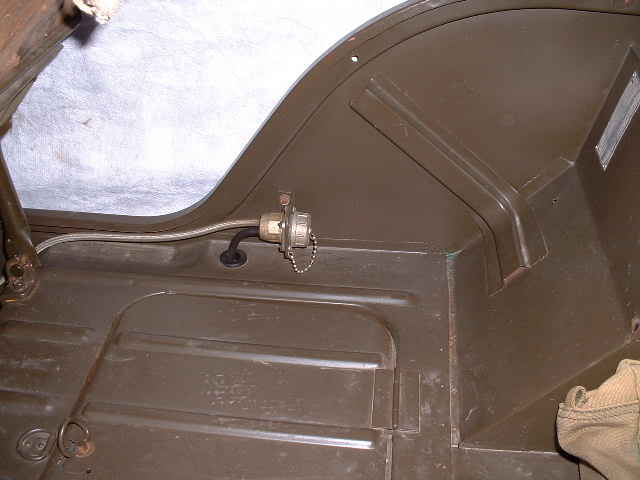

Radio accessory wire
harness outlet |
Still working on: MT-299 Base Mount Mast sections 116-117-118 MP50
Base Antenna base
Credits:
Lewis Smith for his radio setup.
Mark Walter for the USMC pictures
Don Carlton |
